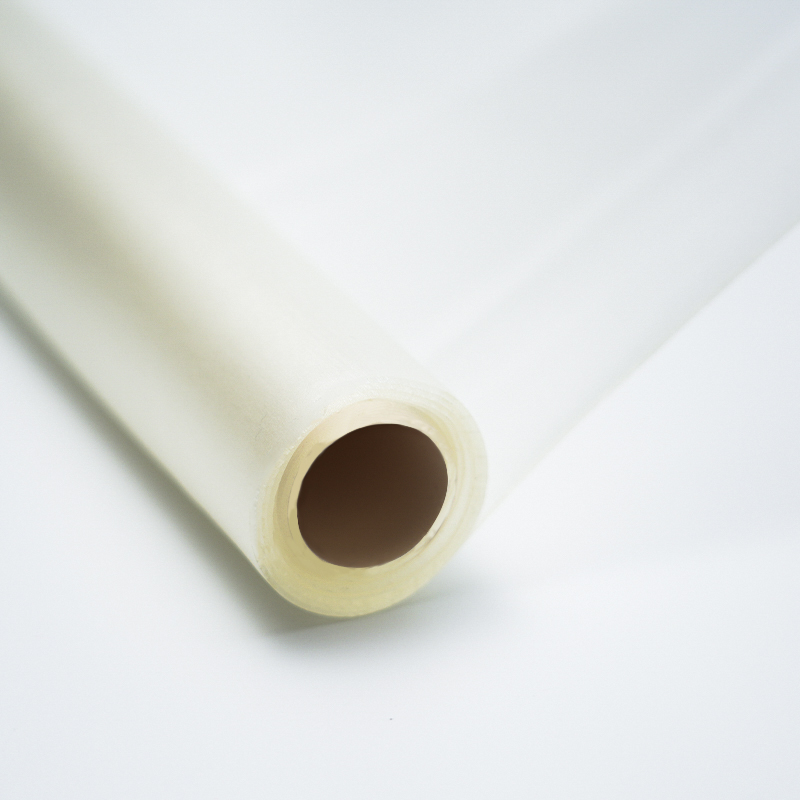

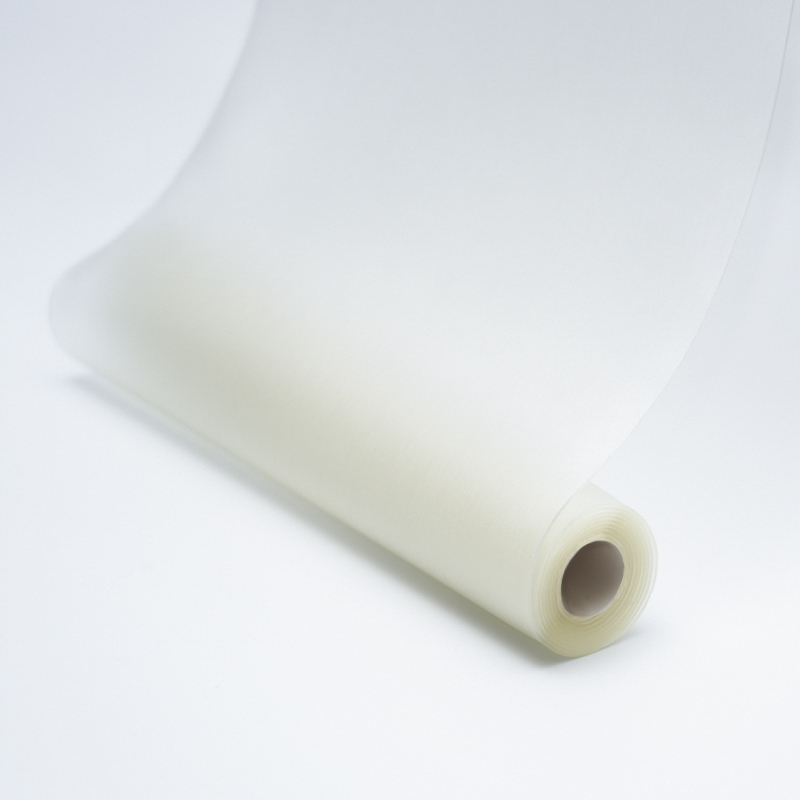

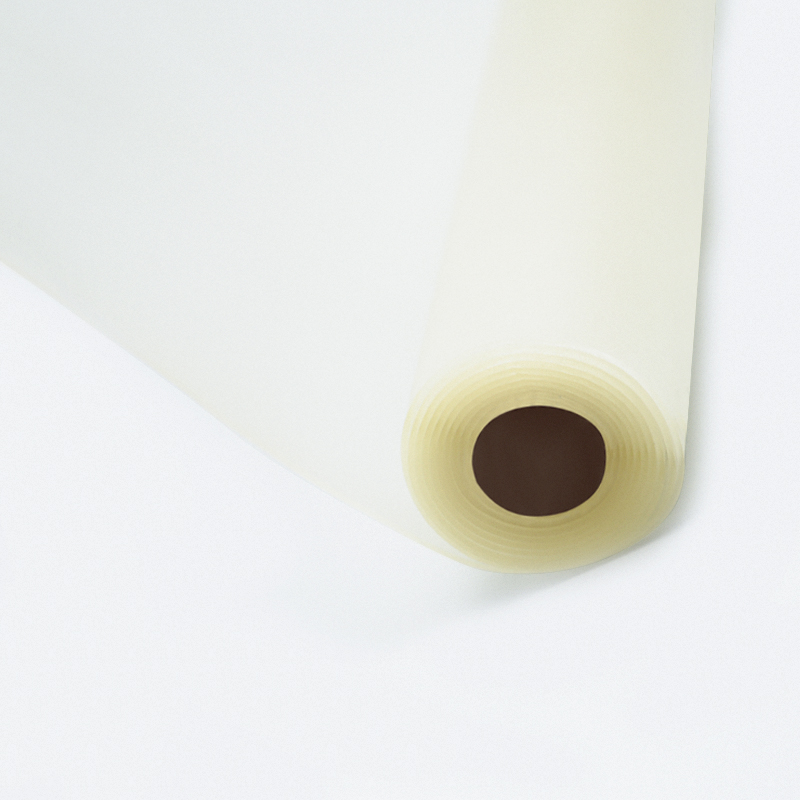

Automotive PVB Interlayer Film

DARUI Automotive PVB film can meet the requirements of automotive grade "membrane", and tensile strength is about ≥20.0.

Color: Clear, green, blue, gray……

Type: Intermediate film, frozen film, sound insulation film……

CONTACT US
01Specification 02Application 03Inquiry
Thickness Items Automotive Shade PVB Film 0.76mm
Blue shade/ Green shade/ Grey shade
                                   Appearance
Appearance The achromatic or light yellow clear film, smooth surface without scratch or crease
Dotted Impurities and Air Bubbles Do not exceed 6-8 per roll; To make the markings, add an extended 1-m film at each site
      Size
Thickness(mm) 0.76±0.02
Lateral  Lateral and longitudinal evenness degree shouldn't exceed 15μm at a distance of 25μm;

Lateral deviation should be less than 35pm, while longitudinal deviation should be less than25μm
Moisture(%) 0.35-0.55
Penetration Resistance Test
  National Standard GB9656-2003
Mpa Tensile Strength (Mpa) >25
Headform Impact Test
National Standard GB9656-2003
 Haze(%) ≤0.4
 Cold shock-20°C
National Standard GB9656-2003
(60°C/15min)% Shrinkage(%) ≤12
 Thermal Shock40°C
National Standard GB9656-2003
Pummel Value 3-6 Implied Optical Distortion (Millidiopter)                    ≤5
 Light Transmittance(%)    ≥89 Roughness (μm) Rl:                25-45
 Yellow Index <8   Elongation at Bleak(%)            >200
