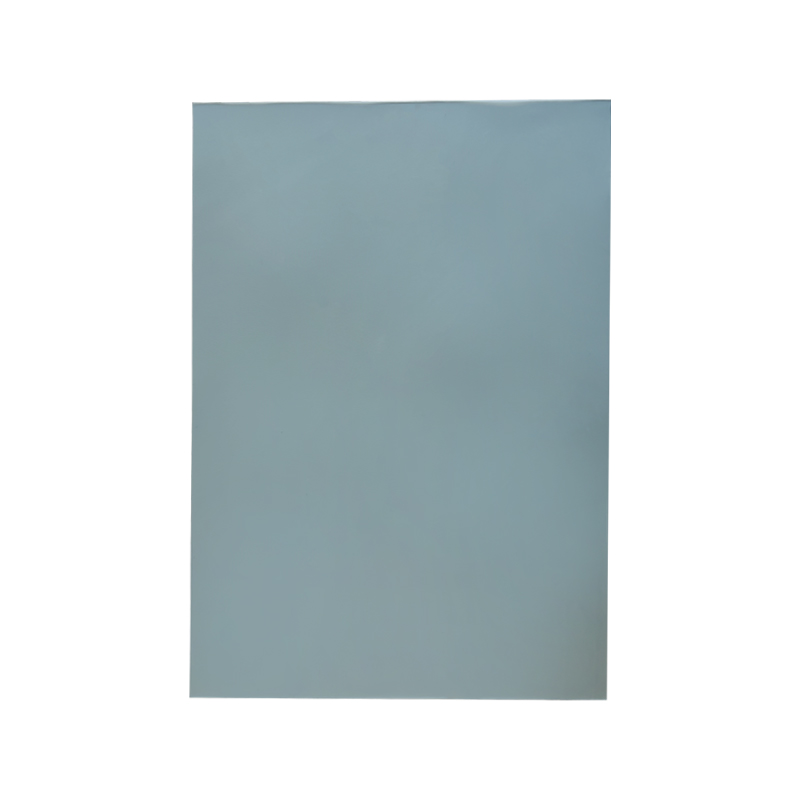

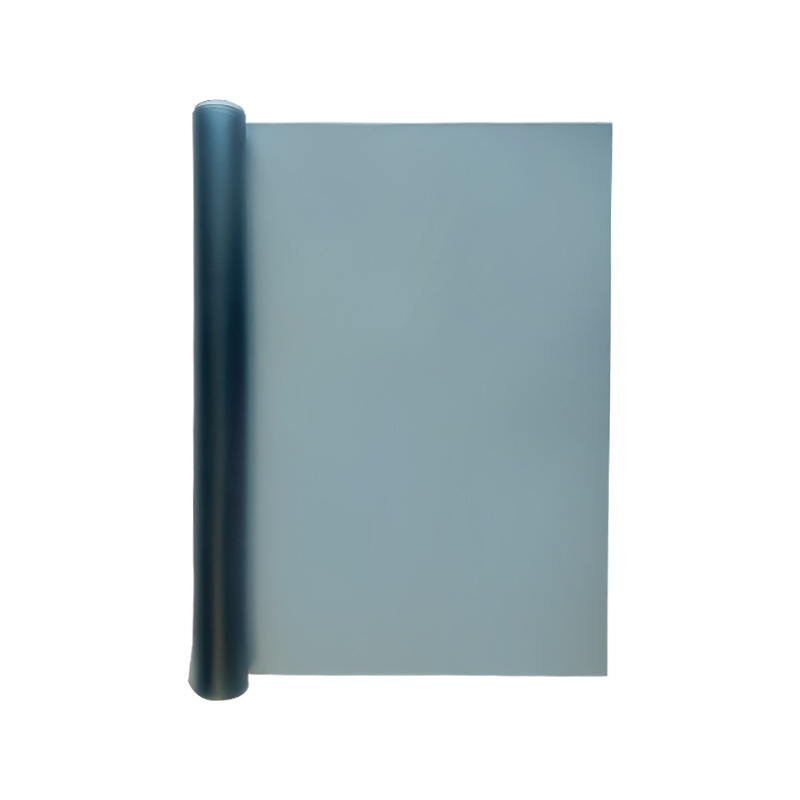

PVB Heat Insulation Film

PVB heat-insulating film is a blend of polyvinyl butyral resin with plasticizer and other plasticizers, adding nano heat-insulating medium using extrusion and calendering technology equipment. This product is produced using our original technology, filling the technical blank in domestic PVB heat-insulating adhesive film. At present, the PVB film made by DuPont, Sekisui Chemical, and other companies is a colorless or primary color film, of which the colorless film has a low infrared barrier rate, and the primary color film is easy to change color and low thermal insulation rate with the addition of color pigments. Hengte PVB heat insulation film using an inorganic nano-insulation medium on the PVB film process modification, product has superior physical properties, strong thermal insulation, the use of long-lasting non-discoloration, the product also has sound insulation and anti-theft function.

CONTACT US
01Specification 02Application 03Inquiry

Product Features
Safety: Hengte PVB heat-insulating interlayer film and composite glass layer have a strong adhesive strength, in the case of external impact, can prevent the impact of material penetration, even if the glass is broken, can still be attached to the glass fragments in the interlayer, will not fall off the four scattered injuries.
Energy Saving: PVB interlayer made of architectural, automotive laminated glass can effectively block infrared rays, have good thermal insulation performance, and high energy efficiency; the product has a high visible light transmittance, through the nano-insulating medium and the production process of reasonable adjustment of the visible light transmittance of the film as well as the adjustment of the coefficient of thermal insulation.
Anti-theft: PVB made of laminated glass is very tough, even if the burglars will break the glass, due to the intermediate layer with the glass firmly adhered together, but still maintains the integrity, so that the burglars can not enter the room.
Sound Insulation: As Hengte PVB film has the function of sound wave blocking, PVB laminated glass can effectively inhibit the spread of noise, especially in airports, stations, downtown, and road buildings on both sides of the installation of laminated glass, the sound insulation effect is very obvious.

Items Technical Indicators
Color The light blue
Thickness 0.38mm, 0.45mm, 0.76mm, 1.14mm, 1.52mm
Width (mm) 700-3300nm（Con be customized according to requirements）
Minimum Length (m) 150
Visible Light Transmittance(%) 30-85
Infrared Group Of Heat Rate(%) 80-99
Haze(%) ≤0.60
Volatile Matter Content(%) ≤0.55
Tensile Strength(Mpa) ≥20
Bonding Strength(Mpa) ≥8.0
Wet And Heat Resistance 70±2℃, Relative humidity,91-99%,48h no change
Heat Resistant Performance 70±2℃, 48h no change
Cold Resistant -55±2℃, 48h no change
Light Resistance 750W Iluminant 100h Light transaittonce by2%
